| MODEL P/N | SERIES | NUMBER OF LABS/CLBS | SPEED GRADE | NUMBER OF LOGIC ELEMENTS / CELLS | TOTAL RAM BITS | NUMBER OF I/O | VOLTAGE – SUPPLY | MOUNTING TYPE | OPERATING TEMPERATURE | PACKAGE / CASE | SUPPLIER DEVICE PACKAGE |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XC5VTX240T-2FFG1759I | Virtex-5 TXT | 18.720,00 | -2,00 | 239616 | 11943936 | 680 | 0.95 V – 1.05 V | Surface Mount | -40 °C ~ +100 °C (I) | 1759-BBGA / FCBGA | 1759-FCBGA (≈ 42.5 × 42.5 mm) |

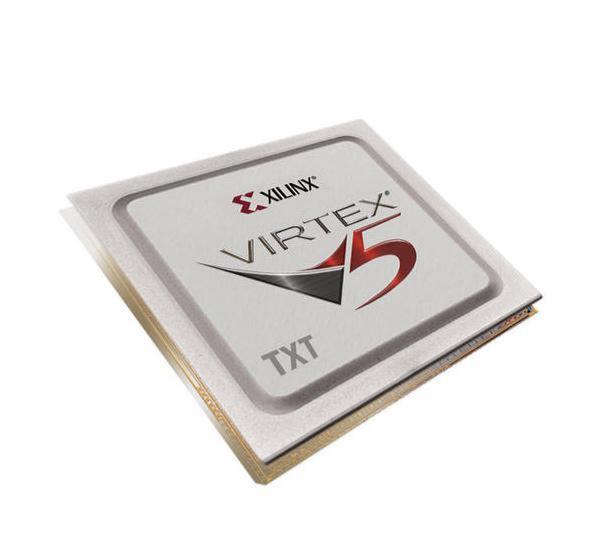

XC5VTX240T-2FFG1759I
Manufacturer: Xilinx
Logic Cells: 239,616
Logic Slices: 37,440
Embedded RAM (eRAM): 10,368 Kb (576 × 18Kb Block RAM)
Maximum User I/O: 680
Package: FFG1759 (Flip-Chip BGA)
Speed Grade: -2
Operating Temperature: Industrial (-40°C to +100°C)
Specifications
XC5VTX240T-2FFG1759I – Xilinx Virtex-5 TXT FPGA | Specs, Features, Applications
Overview
The XC5VTX240T-2FFG1759I is a high-capacity FPGA from the Xilinx Virtex-5 TXT family, designed for systems that require large programmable logic together with high-speed serial connectivity.
Built on a 65 nm FPGA architecture, the device integrates a large number of configurable logic resources, embedded DSP processing blocks, block RAM memory, and high-speed multi-gigabit transceivers. These capabilities make it suitable for demanding digital systems where both processing density and high-bandwidth communication are required.
Engineers typically select the XC5VTX240T for platforms such as telecom switching equipment, high-speed networking hardware, signal processing systems, and embedded computing devices.
For companies maintaining long-lifecycle infrastructure equipment, this FPGA is frequently sourced for system upgrades, repair, or continued production of legacy platforms.
Quick Answer (Optimized for Google AI Overview)
What is XC5VTX240T-2FFG1759I?
The XC5VTX240T-2FFG1759I is a Virtex-5 TXT FPGA from Xilinx that provides around 240K logic cells, embedded DSP slices, block RAM, and multi-gigabit serial transceivers.
It is commonly used in telecommunications infrastructure, high-speed networking systems, industrial control platforms, and advanced signal processing equipment.
Key Features
Virtex-5 65 nm FPGA architecture
Approximately 240,000 logic cells
Integrated DSP48E slices for digital signal processing
Embedded block RAM memory resources
Multi-Gigabit Transceivers (MGT) for high-speed communication
Flexible clock management architecture
High-performance routing network
FFG1759 flip-chip BGA package
Speed grade −2, offering higher performance than −1 devices
Industrial temperature option
These capabilities allow the FPGA to handle large parallel processing tasks while maintaining high interface bandwidth.
Typical Applications
The XC5VTX240T-2FFG1759I is widely used in systems where high-speed data processing and flexible logic configuration are required.
Typical use cases include:
Telecommunications base stations
Optical transmission equipment
High-speed Ethernet switching systems
Network packet processing platforms
Video processing and broadcast equipment
Radar and defense electronics
Medical imaging systems
Industrial automation and data acquisition
The integrated transceivers allow designers to implement high-speed interfaces such as PCIe, XAUI, Serial RapidIO, and high-bandwidth serial links.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Xilinx |
| Part Number | XC5VTX240T-2FFG1759I |
| FPGA Family | Virtex-5 TXT |
| Process Technology | 65 nm |
| Logic Cells | ~240K |
| DSP Resources | DSP48E slices |
| Block RAM | Integrated memory blocks |
| High-Speed Transceivers | Multi-Gigabit |
| Package | FFG1759 (Flip-Chip BGA) |
| Speed Grade | −2 |
| Temperature Range | Industrial |
Package Details
The FFG1759 flip-chip BGA package provides a large number of I/O connections suitable for complex FPGA designs.
Advantages of this package include:
High pin density for large FPGA systems
Optimized signal integrity for high-speed interfaces
Reliable thermal performance for telecom and industrial equipment
This package is commonly used in networking boards, telecom hardware, and embedded computing systems.
Cross Reference
When evaluating replacements or compatible devices, engineers sometimes consider:
XC5VTX240T-1FFG1759I
XC5VTX150T
XC5VLX330
XC6VLX240T
Before selecting an alternative device, always confirm:
Pin compatibility
Speed grade requirements
Transceiver configuration
Firmware / FPGA bitstream compatibility
Virtex FPGA Family Reference
Virtex-4 Series
XC4VLX100
XC4VSX55
XC4VFX100
Virtex-5 Series
XC5VLX110
XC5VFX200T
XC5VSX95T
XC5VTX240T
Virtex-6 Series
XC6VLX240T
XC6VLX365T
XC6VSX315T
These families are commonly used in high-performance digital processing platforms where programmable logic flexibility is required.
Procurement Information
The XC5VTX240T-2FFG1759I is widely used in long-lifecycle industrial and telecom equipment. Many companies source this device for maintenance, repair, or continued manufacturing of existing platforms.
LXB Semicon supplies a range of FPGA devices from stock to support engineers and procurement teams working with legacy or long-term systems.
For stock availability, lead time, or cross-reference suggestions, contact the LXB Semicon team.
Frequently Asked Questions
Is XC5VTX240T-2FFG1759I still used in modern systems?
Yes. While newer FPGA generations exist, Virtex-5 devices remain widely used in telecom infrastructure, industrial equipment, and embedded computing systems that require long-term hardware stability.
What is the difference between −1 and −2 speed grades?
The −2 speed grade typically offers higher maximum operating frequencies and improved timing performance compared with −1 devices.
What package is used for this FPGA?
The device is available in the FFG1759 flip-chip BGA package, which supports high I/O density and high-speed signaling.
